Sale!
-40%

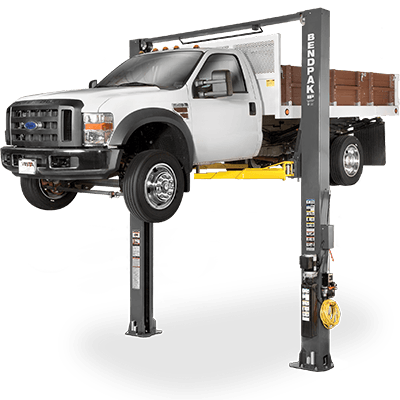

XPR-10XLS 10,000 lbs 2-Post Lift – Symmetric, High Rise, Adjustable Width
Original price was: $5,315.25.$1,989.15Current price is: $1,989.15.
The XPR-10XLS is a 10,000-lb. capacity two-post lift with a symmetric design and adjustable width.
11 Persons Viewing This Product
Hurry Up! Only 3 left at this amazing price!
Get yours before they are all gone!
Additional information
| UPC |
764560663616 |
|---|
Description
XPR-10XLS 10,000 Capacity / Symmetric / Adjustable Width / Screw Pads / HIGH RISE
The XPR-10XLS is a two-post lift with a lifting capacity of 10,000 pounds. It features a symmetrical design and adjustable width for versatility in accommodating a range of vehicle types. The lift has screw pads for stability and a high rise for increased lifting height, making it suitable for a variety of lifting and servicing applications.
Features & Specs
- Lift arms shown with optional foot guards
- 10,000‐lb. lifting capacity
- Expandable top beam accommodates wide or narrow configuration

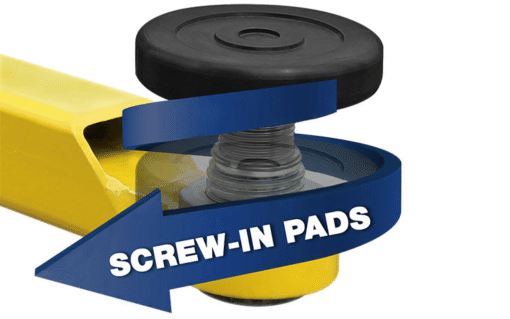

- Double‐telescoping screw pads offer increased versatility
- Padded overhead safety shutoff bar
- Single‐piece columns
- Dual hydraulic direct‐drive cylinders
- Automatic arm restraints
- Lowered arm tube supports
- Maintenance-free UHMW load bearings
- Oversized 59″ tall carriage for superior strength and durability
- Electric / hydraulic power system
- Large, 17″ x 19″ A36 steel base plate
- Self‐lubricating dura‐glide UHMW polyethylene bearing system
- Single‐point safety release
- Safety locks in each column spaced every 3″
- Automatic overhead shutoff
- Plated arm restraints and arm pins for rust prevention
- Heavy‐duty 1/2″ aircraft‐quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue
- 4‐piece 63 mm stackable adapter set comes standard
- ALI Certified
Capacity
Lifting Capacity*
10 000 lbs. (4 536 kg)
*Max Capacity / Front Axle
5 000 lbs. (2 268 kg)
*Max Capacity / Rear Axle
5 000 lbs. (2 268 kg)
Rise
A – Rise:
75″ (1 905 mm)
B – Rise + Pad Only:
79,75″ (2 026 mm)
C – Rise + Pad + 63 mm Adapter:
82,25″ (2 089 mm)
D – Min. Height + Pad:
4,75″ (121 mm)
Time to Full Rise:
50 seconds
Outside Dimensions
E – Height Overall:
157″ (3 988 mm)
F – Width Overall:
132″ (3 353 mm) or 145″ (3 683 mm)
G – Outside Columns:
126,75″ (3 219 mm) or 139,75″ (3 550 mm)
Inside Dimensions
H – Inside Columns:
105,5″ (2 680 mm) or 118,5″ (3 010 mm)
I – Drive-Thru Clearance:
93″ (2 362 mm) or 106″ (2 692 mm)
J – Floor To Overhead Switch:
147″ (3 734 mm)
Arms & Pads
K – Front Arm Reach: (MIN)
25,5″ (648 mm)
K – Front Arm Reach: (MAX)
49,5″ (1 257 mm)
L – Rear Arm Reach: (MIN)
32,25″ (819 mm)
L – Rear Arm Reach: (MAX)
52,5″ (1 334 mm)
Screw Pad Adjustment:
2″ (51 mm)
Max Load Per Arm
2 500 lbs. (1 134 kg)
Power Unit
Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB
Shipping
Weight:
1,778-lbs. (806.5 kg)
Dimensions:
162” x 24” x 32” (4,114 mm x 609 mm x 812 mm)
