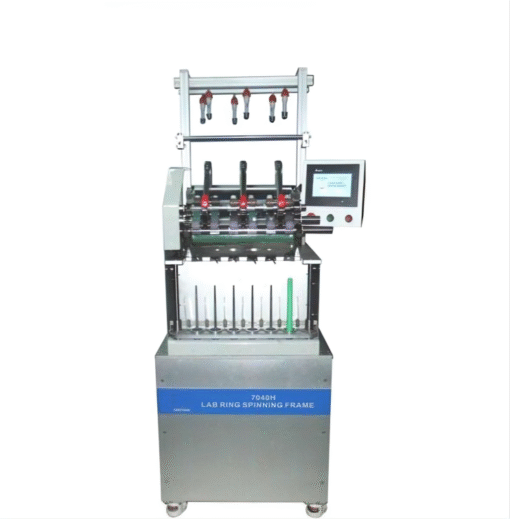

Lab Ring Spinning Frame – Delta PLC, Servo Motor, S/Z Twist, Touchscreen Control

FEATURES:

• Lab ring spinning frame
• Delta brand PLC, drive, servo motor;
• Use S/Z twist turning;
• Rotation speed of spindle accurate to ±1%;
• Aluminum profile body frame with four casters, free to move;
• Modular independent drive for drafting, spindle blade and flyer;
• PLC + touch screen control, easy to learn and operate;
• Use touch screen as man-machine interface, input technical parameters and show
  machine running state by touch screen;
• Multi-functional design, easy to clean, set and maintain;

KEY SPECIFICATION:

• Control mode Touch screen & PLC
• Number of spindles 6
• Applicable fiber length 22~50mm
• Draft range 10~50
• Draft control Automatic
• Roller diameter Front roller: Φ25mm, middle roller: Φ25mm, back roller: Φ25mm
• Center distance of rollers Front and middle: 43mm
• Front and back: 143mm
• Pressure mode Spring cradle
• Twist settable range 200~2000 twist/m, twist direction S or Z
• Max. speed of spindle 12,000rpm
• Spindle gauge 70mm
• Spindle length 205mm
• Ring diameter Φ42mm
• Yarn density range 6~99tex (6~100Ne)
• Capacity Approx. 0.25~1kg/h
• Power supply AC220V, 50Hz
• Dimensions 1,000*750*1,700mm
• Net weight 430kg
