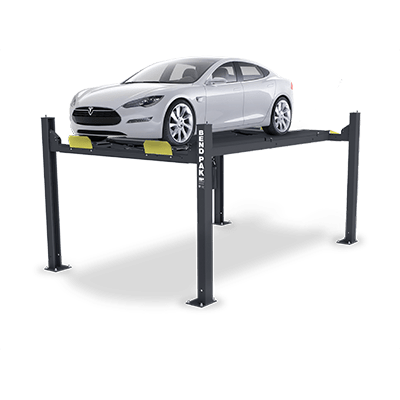

HD-9AE (5175820) 9,000-lbs. Capacity / Alignment Lift / Includes Turnplates and Slip Plates

Name: HD-9AE (5175820) 9,000-lbs. Capacity / Alignment Lift / Includes Turnplates and Slip Plates
SKU: CAREELLLIG6645463635
Availability: InStock

Original price was: $8,135.00.Current price is: $3,881.00.

HD-9AE is a high-capacity alignment lift with a capacity of 9,000 lbs. It is used in automotive repair and maintenance for aligning the wheels and suspension of vehicles.

11 Persons Viewing This Product

Hurry Up! Only 3 left at this amazing price!

Get yours before they are all gone!

SKU: CAREELLLIG6645463635 Category: Alignment Lifts

Additional information

UPC	764560663616

Description

HD-9AE 9,000-lb. Capacity / Alignment Lift / Includes Turnplates and Slip Plates

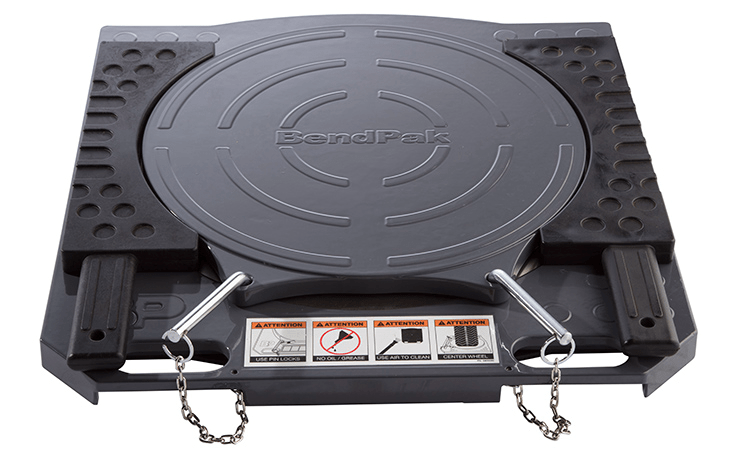

HD-9AE is a high-capacity alignment lift with a capacity of 9,000 lbs. It is used in automotive repair and maintenance for aligning the wheels and suspension of vehicles. The lift includes turnplates and slip plates, which are essential tools for performing alignment work. The turnplates are used to rotate the wheels, while the slip plates allow the wheels to slide freely, making it easier to adjust the suspension. This lift is ideal for auto shops or garages that need a lift specifically designed for alignment work, but have a lower weight capacity requirement.

Features & Specs

9,000-lb. maximum lifting capacity
CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493

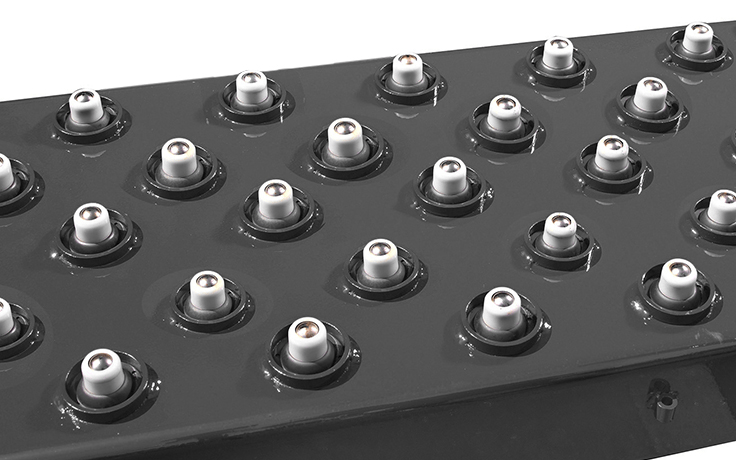

Multi-caster slip plates
Dual radius plate positions
Heavy-duty stainless steel lifting cables

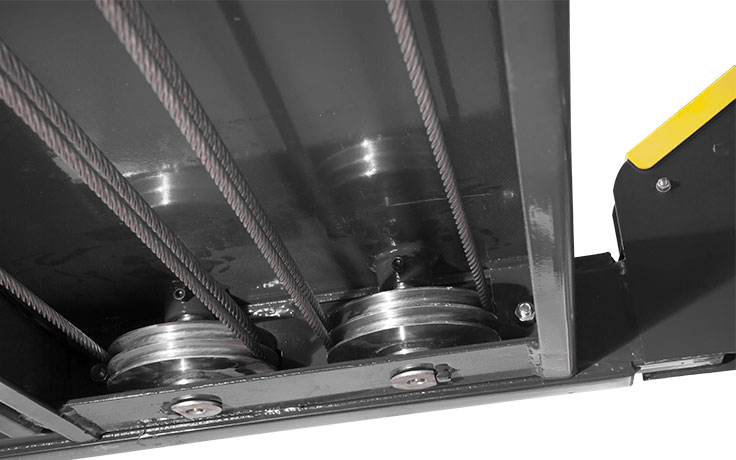

Dual-hub cable sheaves
Grease nipples on every sheave and sheave axle
Single hydraulic cylinder
Integrated hydraulic flow restrictor
Durable powder-coat finish

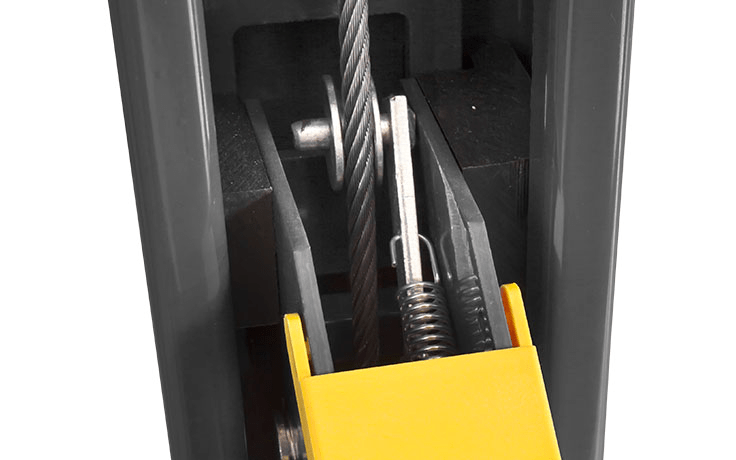

Spring-loaded safety locks
Simple push-button lock release
Aircraft-quality stainless steel and aluminum pneumatic cylinders
Secondary lock system
Fully enclosed cables, airlines, safety latches and sheaves
Multiple adjustable height locking positions
Maintenance-free power system
Easy-to-reach operator controls

Capacity

Lifting Capacity*

9,000 lbs. (4,082 kg)

*Max Capacity / Front Axle

4,500 lbs. (2,041 kg)

*Max Capacity / Rear Axle

4,500 lbs. (2,041 kg)

Rise

A – Min. Runway Height:

6.5″ (165 mm)

B – Max. Rise:

70″ (1,778 mm)

C – Max. Lifting Height:

76.5″ (1,943 mm)

Time to Full Rise:

60 seconds

Outside Dimensions

D – Overall Width:

127″ (3,226 mm)

E – Outside Length:

198″ (5,029 mm)

F – Overall Length:

224″ (5,690 mm)

G – Height of Columns:

88″ (2,235 mm)

Inside Dimensions

H – Width Between Columns:

117″ (2,972 mm)

I – Drive-Thru Clearance:

103.5″ (2,629 mm)

Runways

J – Runway Width:

19″ (483 mm)

K – Length of Runways:

188″ (4,775 mm)

L – Width Between Runways:

40″ (1,016 mm)

Alignment

M – Min. 4-Wheel Alignment:

71″ (1,803 mm)

N – Max. 4-Wheel Alignment:

145″ (3,683 mm)

O – Max. 2-Wheel Alignment:

160″ (4,064 mm)

Minimum Wheelbase

Rated Capacity:

135″ (3,429 mm)

75% Capacity:

115″ (2,921 mm)

50% Capacity:

95″ (2,413 mm)

25% Capacity:

80″ (2,032 mm)

Locking

Locking Positions: 12

Lock Spacing: 4

Power Unit

Motor:

220 VAC / 60 Hz / 1 Ph

Noise:

45 dB

Shipping

Weight:

2,270-lbs. (1,029 kg)

Dimensions:

190” x 22” x 42” (4,826 mm x 558 mm x 1,066 mm)
