HD-973PX Tri-Level Parking Lift – 9,000 & 7,000 lbs Capacity, Extended, High Lift
Original price was: $19,451.25.$7,670.75Current price is: $7,670.75.
The HD-973PX is a tri-level parking lift with a 9,000 or 7,000 lb. capacity. It is an extended and high lift model that is a special order item and has a patent pending.
11 Persons Viewing This Product
Additional information
| UPC |
764560663616 |
|---|
Description
HD-973PX 9,000 and 7,000 Lbs. Capacity / Tri-Level Parking Lift / Extended / High Lift

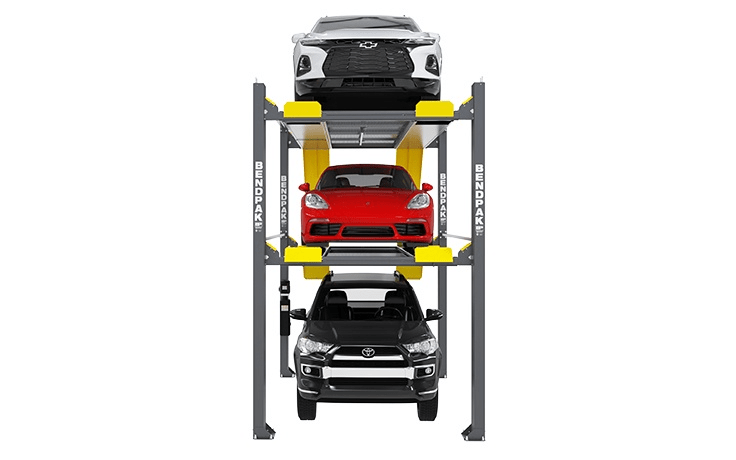

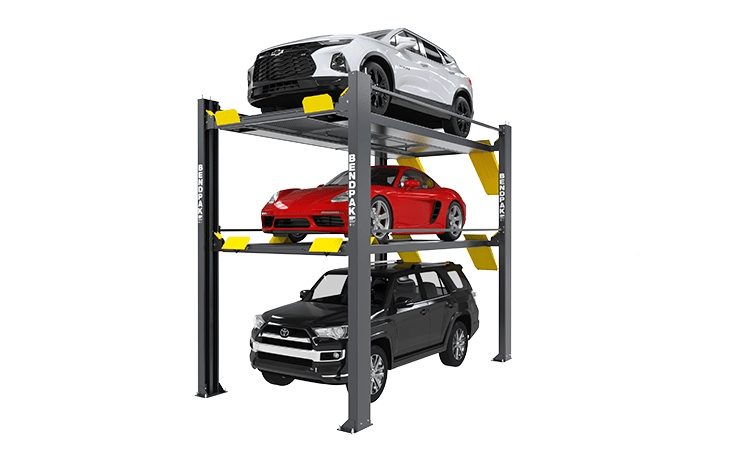

The tri-level HD-973PX is a four-post parking lift that maximizes your parking capacity without adding any additional real estate. Each HD-973PX houses up to three vehicles on strengthened parking platforms to give you the most space for your buck. With an additional 84” of overall height compared to the HD-973P parking lift, the HD-973PX supports some of the biggest vehicles around! This extra height, along with the additional 10” of runway length, gives you the perfect amount of space to fit longer and taller vehicles, while maintaining a height that will fit comfortably in most shops and garages. With the topmost platform’s weight capacity sitting at a hefty 7,000 lbs. and the lower deck handling up to 9,000 lbs., the HD-973PX is ideal for lifting even heavy-duty vehicles like full-size trucks and SUVs.
Features & Specs
- Extended length, high rise
- Perfect for parking, storage and service
- 7,000 lb. capacity upper deck
- 9,000 lb. capacity lower deck
- Superstructure features durable powder coat finish
- Perfect for cars, trucks, and SUVs
- Platforms feature full-length aluminum decking
- Rugged welded-steel construction
- Powerful hydraulic cylinders
- Heavy-duty 3/8” lifting cable
- Heavy-duty steel construction
- Wide base-plate for maximum stability
- Heavy-duty steel construction
- Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze
- Integrated hydraulic flow restrictor provides controlled descent in event of hose rupture
- Reliable electric-hydraulic power system
- Multi-position safety locks in each column
- Automatic safety locks combined with redundant anti-fall devices
- Adjustable lock ladders
- Independent backup slack-cable safety latches
- Push-button pneumatic safety release.
- Padded trip bar with limit switch prevents lower vehicle from making contact with upper platform.
- Simple controls
- Optional drive-thru ramps available
- Optional 4,500-lb. air-hydraulic rolling jacks available
Style
- Style: Multi-Level Parking Lift
Top Platform
- Lifting Capacity* 7,000 lbs. (3,175 kg)
- Max Capacity / Front Axle :3,500 lbs. (1,588 kg)
- Max Capacity / Rear Axle :3,500 lbs. (1,588 kg)
- A – Overall Width : 112″ (2,849 mm)
- B – Overall Length : 252.25″ (6,409 mm)
- C – Height of Columns : 173″ (4,398 mm)
- D – Drive-thru Clearance : 87″ (2,201 mm)
- E – Maximum Rise : 151.5″ (3,849 mm)
- F – Maximum Lifting Height :156.5″ (3,972 mm)
- G – Distance Between Columns : 100″ (2,546 mm)
- H – Runway Width : 19″ (482 mm)
- I – Width Between Runways : 44″ (1,121 mm)
- J – Runway Length : 199″ (5,056 mm)
- Min. Wheelbase @ rated Capacity1 :140″ (3,556 mm)
- Min. Wheelbase @ 75% Capacity1 :120″ (3,084 mm)
- Min. Wheelbase @ 50% Capacity1 : 100″ (2,540 mm)
- Min. Wheelbase @ 25% Capacity1 :80″ (2,032 mm)
- Locking Positions : 34
- Locking Spacing : Every 4″ (102 mm)
- Lifting Time to Max. Rise : 90 seconds
- Motor :220 VAC / 60 Hz / 1 Ph
Bottom Platform
- Lifting Capacity* :9,000 lbs. (4,082 kg)
- Max Capacity / Front Axle
- 4,500 lbs. (2,041 kg)
- Max Capacity / Rear Axle : 4,500 lbs. (2,041 kg)
- A – Overall Width 112″ (2,842 mm)
- B – Overall Length 252.25″ (6,409 mm)
- C – Height of Columns 245″ (6,227 mm)
- D – Drive-thru Clearance 90.25″ (2,295 mm)
- E – Maximum Rise :82.25″ (2,088 mm)
- F – Maximum Lifting Height :87.25″ (2,211 mm)
- G – Distance Between Columns 100″ (2,546 mm)
- H – Runway Width :19″ (482 mm)
- I – Width Between Runways :44″ (1,121 mm)
- J – Runway Length :186.75″ (4,744 mm)
- Min. Wheelbase @ rated Capacity1 135″ (3,429 mm)
- Min. Wheelbase @ 75% Capacity1 115″ (2,921 mm)
- Min. Wheelbase @ 50% Capacity1 95″ (2,413 mm)
- Min. Wheelbase @ 25% Capacity1 75″ (1,905 mm)
- Locking Positions :16
- Locking Spacing :Every 4″ (102 mm)
- Lifting Time to Max. Rise :50 seconds
- Motor 220 VAC / 60 Hz / 1 Ph
Shipping
- Shipping Weight: 5,948-lbs (2,697 kg)
