Description

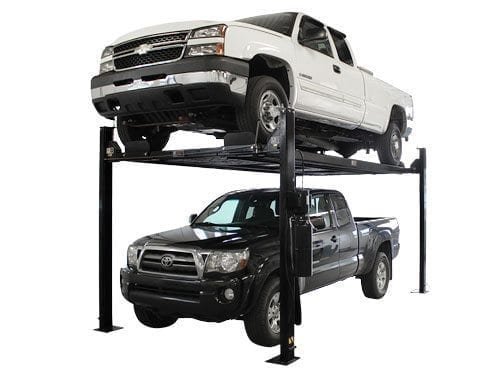

The Atlas® Garage PRO8000EXT-L features the extra lifting height of the PRO8000EXT but is also 20 inches longer and 3 inches wider. Or to compare to the original, the Garage PRO8000EXT-L is 20 inches longer, 3 inches wider, and 14 inches taller than the standard Atlas® Garage PRO8000! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks, except duallys. This is because the dual rear wheels are TOO WIDE to fit between the column lock assemblies. Check out the Atlas® Garage PRO9000 if you need a portable lift for your dually!
The Atlas® Garage PRO series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not desinged for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application please contact a salesperson..
The Atlas® Garage PRO8000EXT-L includes free plastic drip trays, a free steel jack tray, and a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside.
- 8,000 lb. Capacity
- Free Standing/Portable Design
- Extra Tall/Extra Long
- Diamond Plated Runways
- Single-Point Lock Release
- Lock Ladder Design

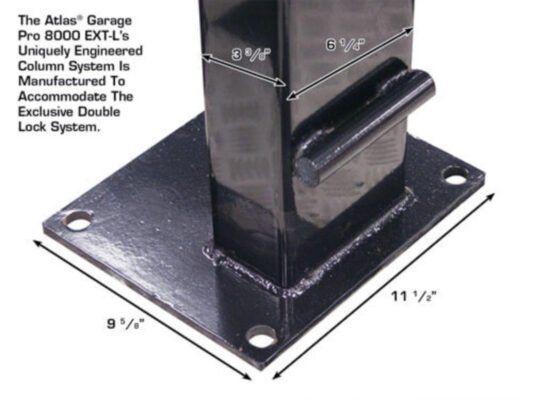

- Double Lock Safety System
- Caster Kit With Polyurethane Wheels Included

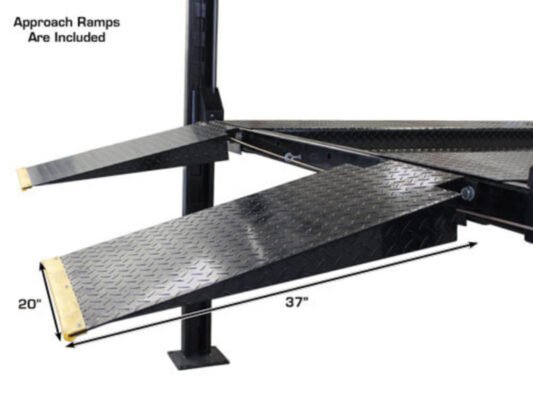

- Steel Approach Ramps Included
- Steel Jack Tray Included
- 4 Plastic Drip Trays Included
- 4 Wheel Stops Included
- 2 Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles
- 110volt Electric Operation (30 AMP BREAKER REQUIRED)
- Shipping Weight 1,900 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
| Atlas® Garage PRO8000EXT-L Specifications | |
| Capacity | 8,000 Lb. |

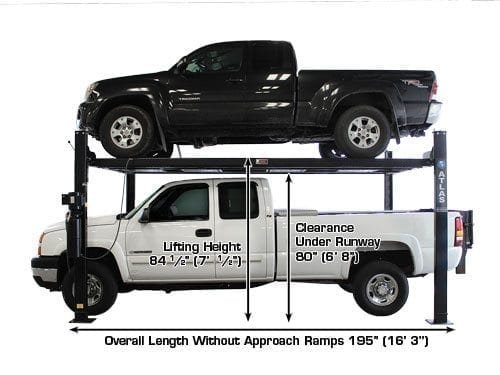

| Lifting Height To Top Of Runway | 84″ (7′) |
| Clearance Under Runways | 78 1/2″ (6′ 6 1/2″) |
| Height Of Columns | 98 1/2″ (8′ 2 1/2″) |
| Overall Width (Without Motor) | 108″ (9’) |

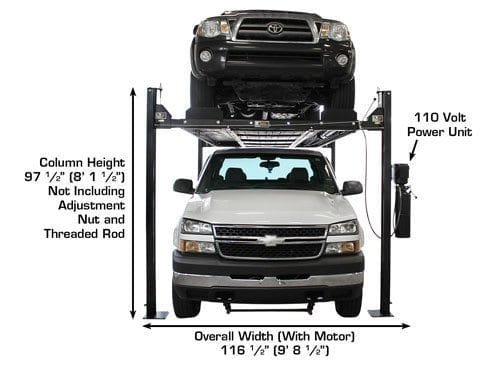

| Overall Width (With Motor) | 116 1/2″ (9′ 8 1/2″) |
| Overall Length With Approach Ramp | 222″ (18’ 6”) |
| Approach Ramp | 37″ (3′ 1″) |
| Runway Width | 22″ (w/ Rails) or 18 3/4″ (Driving Surface) |

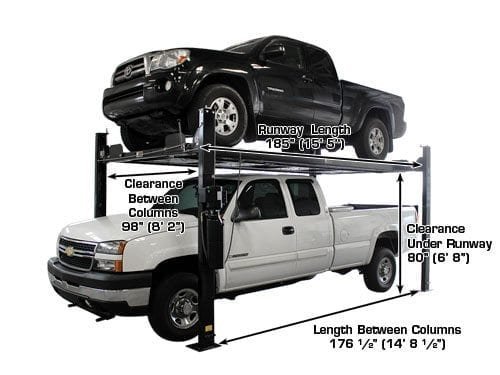

| Runway Length | 185″ (15’ 5”) |

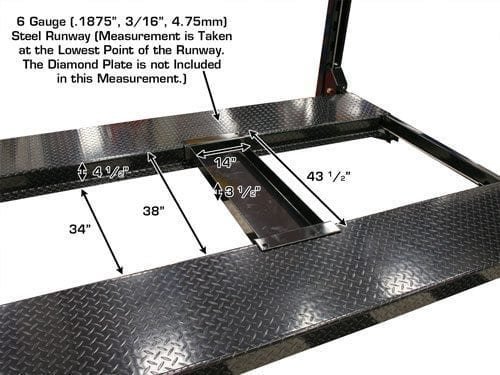

| Runway Thickness | 4 1/2″ |
| Width Between Runways | 38″ (3′ 2″) |
| Width Between Runway Rails | 34″ (2’ 10″) |
| Outside Runway To Outside Runway | 77 3/4″ (6′ 5 3/4″) |

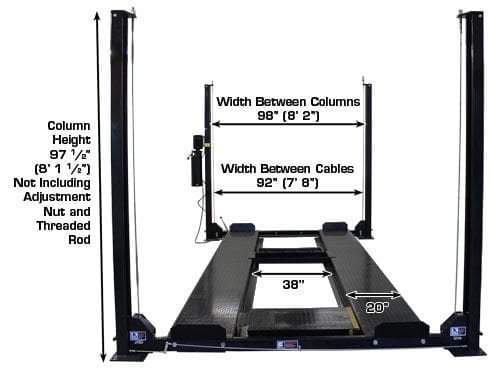

| Clearance Between Columns | 98″ (8’ 2″) |
| Length Between Columns | 176 1/2″ (14’ 8 1/2″) |
| Maximum Wheel Base | 173″ (14′ 5″) |

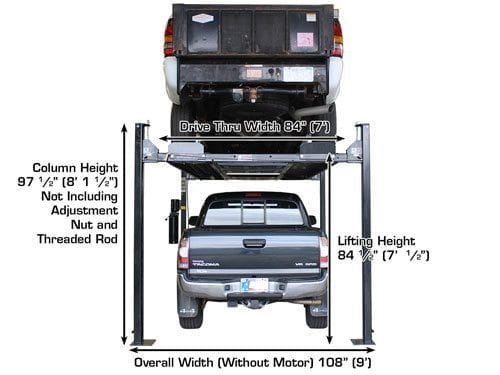

| Drive Thru (Outside Of Tire To Outside Of Tire) | 84″ (7’) |
| Motor/Electrical Requirement | 110 Volt, 30 AMP BREAKER REQUIRED |
| Shipping Weight | 1,900 lb. |
