Atlas BP10000X 10,000 lbs Baseplate Lift

Name: Atlas BP10000X 10,000 lbs Baseplate Lift
SKU: CARLIOO876835
Availability: InStock

Original price was: $5,113.00.Current price is: $2,067.80.

11 Persons Viewing This Product

Hurry Up! Only 3 left at this amazing price!

Get yours before they are all gone!

SKU: CARLIOO876835 Category: Two post lifts

Additional information

UPC	764560663616

Description

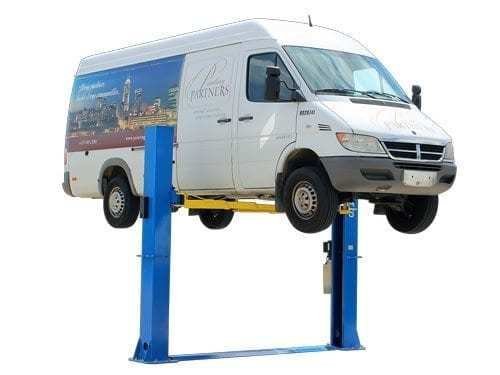

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns.

If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.

Features & Benefits

10,000 lb. Capacity
Commercial Grade
Baseplate, Open-Top Style Lift
Overall Height: 111 7/8″ (9′ 3 7/8″)
Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
Super-Symmetric Arms

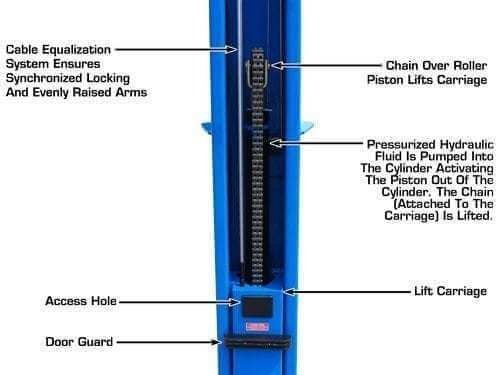

Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
Welded Support Gussets Increase Column Strength.
Automatic Arm Restraints
Powder Coat Finish
Free 12 Piece Truck Adapter Set
5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Atlas® ATTD-BP10000X Specifications

Capacity	10,000 lb.

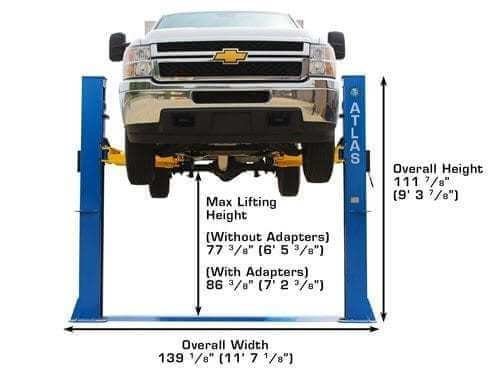

Overall Height	111 7/8″ (9’ 3 7/8″)
Overall Floor Width	139 1/8″ (11’ 7 1/8″)
Outside Column to Outside Column	134 1/2″ (11’ 2 1/2″)

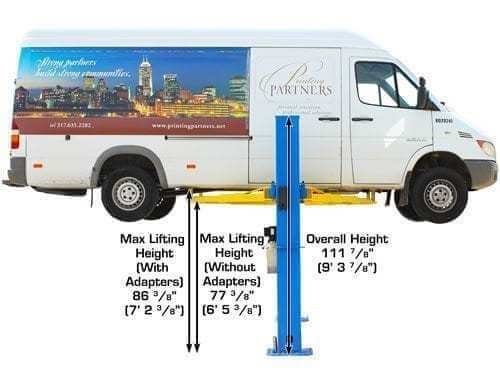

Maximum Lift Height (Without Adapters)	77 3/8″
Maximum Lift Height (With Adapters)	86 3/8″
Minimum Arm Height	4″
Inside Column	112 1/4” (9’ 4 1/4”)
Drive Thru	101 1/4” (8’ 5 1/4”)
Column Size	9 1/2″ x 11″
Column Thickness of Steel	6mm
Base Of Lift	17 1/2″ x 21 1/2″
Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46(NOT INCLUDED)

Adapter Heights	4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size	1.5”
