Additional information
| UPC |
764560663616 |
|---|
Description
APlusLift AP-14SR 14,000 lbs 2-Post Overhead Direct Drive Car Lift – 3 Year Warranty
-
Industry leading 3 YEAR WARRANTY
-
Single Point Safety Lock Release System
-
Two Set of 2 3/4″ Tall and 5 1/2″ Tall Truck Adapters Included; 6’7″ Lift Height Maximum with Truck Adapters
-
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
-
All Robot Welded Structure with Durable Powder Coated Finish
APlusLift AP-14SR is a 14000LB single point release overhead car lift (auto hoist) built with quality materials and good workmanship.
We are proud to offer an industry leading 3 year warranty for all parts (a $499 value)! We have all replacement and optional parts available for our lifts.
Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.
Warehouse Pickup Locations (Contact Us for $300 Discount): Charlotte (NC), Chicago (IL), Dallas (TX), Jacksonville (FL), Kansas City (MO), Las Vegas (NV), Los Angeles (CA), Mobile (AL), Ontario (OH), Portland (OR), Tacoma (WA), Virginia Beach (VA), and Watsontown (PA).

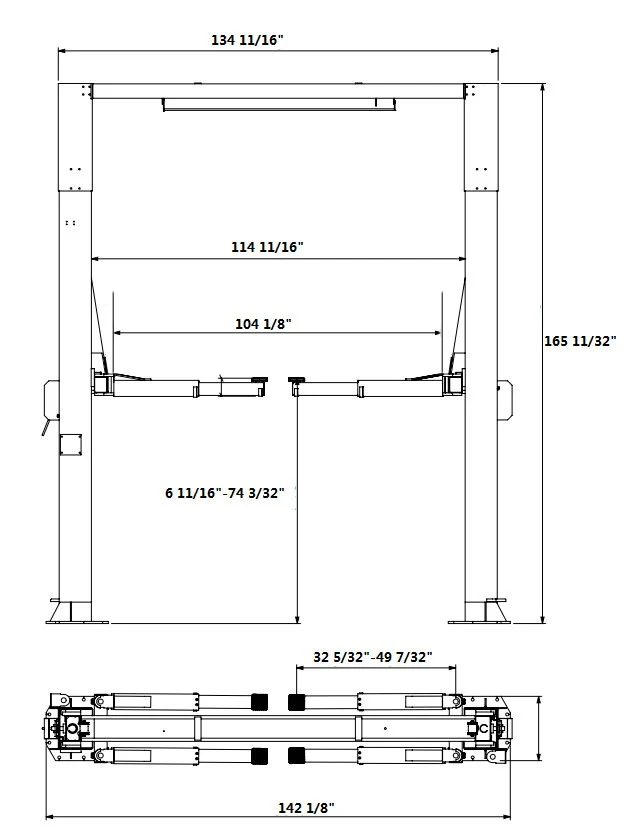

Specifications |
|||||||||
| Model | AP-14SR (This Model) |
HW-12HD (for Comparison) |
|||||||
| Manual | AP-14SR Manual | HW-12HD Manual | |||||||
| Style | Overhead | Overhead | |||||||
| Lock Release | Single Point Release | Single Point Release | |||||||
| Warranty | 3 Years (36 Months) | 3 Years (36 Months) | |||||||
| Lifting Capacity | 14,000 LB | 12,000 LB | |||||||
| Overall Height | 165 11/32″ | 160″ | |||||||
| Overall Width | 142 1/8″ | 137 13/32″ | |||||||
| Maximum Lift height with Truck Adapters | 79 19/32″ | 77 15/16″ | |||||||
| Maximum Lift height without Truck Adapters | 74 3/32″ | 72 7/16″ | |||||||
| Minimum Height of Adjustable Pads from Ground | 6 11/16″ | 5 1/8″ | |||||||
| Drive Through Width (Carriage to Carriage) | 104 1/8″ | 99 23/32″ | |||||||
| Column to Column Width | 114 11/16″ | 110 1/32″ | |||||||
| Column Cross Section | 12 7/32″L x 9 27/32″W | 12 7/32″L x 9 27/32″W | |||||||
| Driving Mode | Dual hydraulic cylinders, direct drive | Dual hydraulic cylinders, direct drive | |||||||
| Motor | 220V Single Phase 3HP (recommend a 30A breaker) | 220V Single Phase 3HP (recommend a 30A breaker) | |||||||
| Hydraulic Oil | 3.2-5 gallons AW32/AW46 (Not Included) | 3.2-5 gallons AW32/AW46 (Not Included) | |||||||
| Time to full rise | 75 seconds | 75 seconds | |||||||
| Shipping Weight | 2300 LB | 2100LB | |||||||
| Shipping package size | 150″L x 33″W x 21″H | 146″L x 33″W x 21″H | |||||||
| Arm Assembly | Symmetrical Arm Assembly | Symmetrical Arm Assembly | |||||||
| Front Arms | Straight Front 2 stages reach from 32 5/32″ to 49 7/32″ | 2 stages reach from 32 5/32″ to 49 7/32″ | |||||||
| Back Arms | Straight Rear 2 stages reach from 32 5/32″ to 49 7/32″ | 2 stages reach from 32 5/32″ to 49 7/32″ | |||||||
| Column Steel Thickness | 1/4″ | 1/4″ | |||||||
| Carriage Steel Thickness | 1/4″ | 1/4″ | |||||||
| Carriage Yoke Thickness | 13/32″ | 13/32″ | |||||||
| Arm Steel Thickness | 5/16″ | 5/16″ | |||||||
| Base Plate Steel Thickness | 5/8″ | 5/8″ | |||||||
| Truck Adapters (Height Extensions) | Two Sets: 4pcs: 5 1/2″ Tall 4pcs: 2 3/4″ Tall |
Two Sets: 4pcs: 5 1/2″ Tall 4pcs: 2 3/4″ Tall |
|||||||
| Other Parts Included |
|
||||||||
| Optional Parts | 2 3/4″ and 6″ Tall Truck Adapters | ||||||||
| Concrete Requirement | 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below) | ||||||||
Features
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain
- Single point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage and Column Material Q235B Steel
- Lifting operation by pressing “UP” button on motor
- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading
- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8″ diameter cable and 3″ pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
