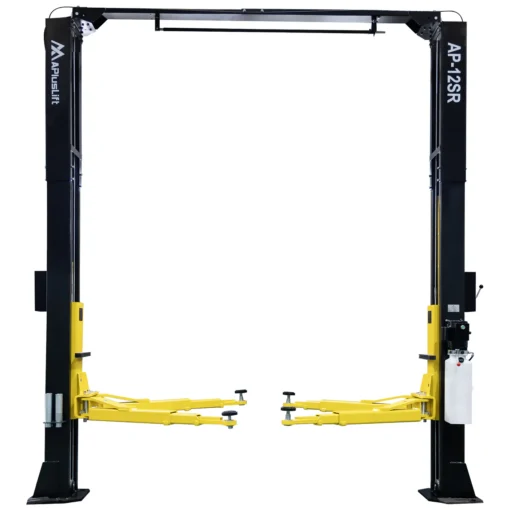

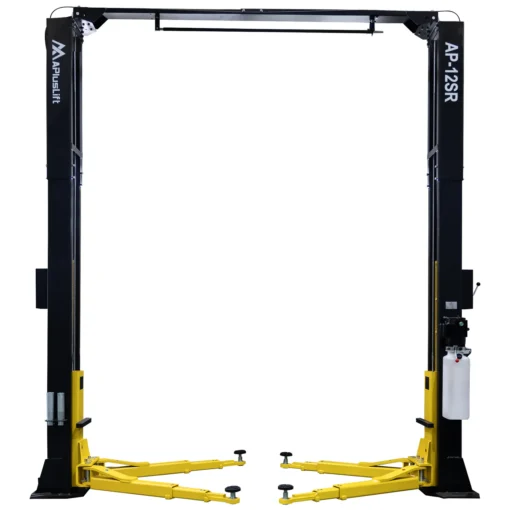

APlusLift AP-12SR 12,000 lbs 2-Post Overhead Direct Drive Car Lift – Single Release, 3 Year Warranty

Name: APlusLift AP-12SR 12,000 lbs 2-Post Overhead Direct Drive Car Lift – Single Release, 3 Year Warranty
SKU: LiftCar3344544HAUY74645
Availability: InStock

Original price was: $2,499.00.Current price is: $779.40.

11 Persons Viewing This Product

Hurry Up! Only 3 left at this amazing price!

Get yours before they are all gone!

SKU: LiftCar3344544HAUY74645 Category: Alignment Lift Combo

Additional information

UPC	764560663616

Description

APlusLift AP-12SR 12,000 lbs 2-Post Overhead Direct Drive Car Lift – Single Release, 3 Year Warranty

Industry leading 3 YEAR WARRANTY
Single Point Safety Lock Release System

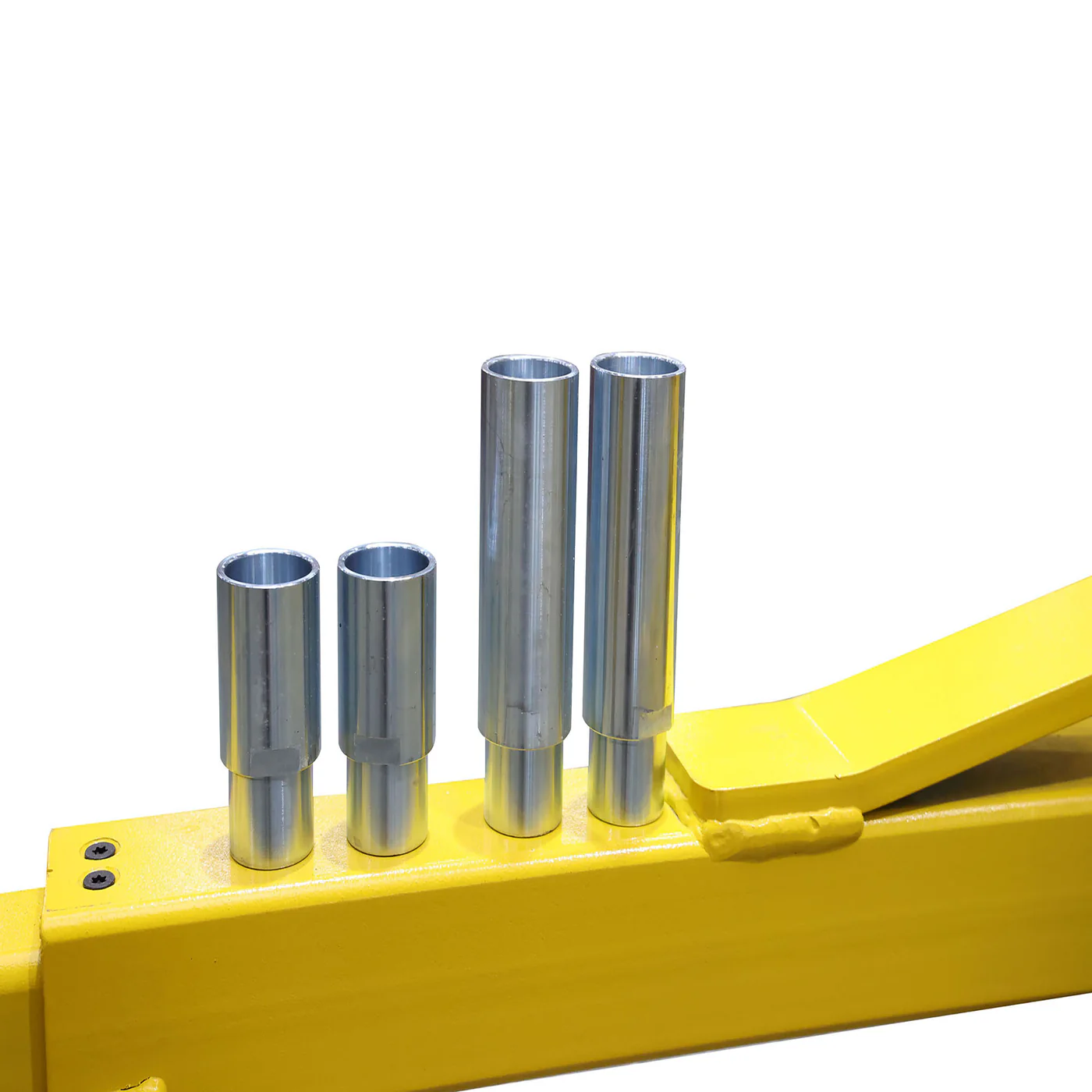

Two Set of 3″ and 6″ Tall Truck Adapters Included; 6’7″ Lift Height Maximum with Truck Adapters
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
All Robot Welded Structure with Durable Powder Coated Finish

APlusLift AP-12SR is a 12000LB single point release overhead car lift (auto hoist) built with quality materials and good workmanship.

We are proud to offer an industry leading 3 year warranty for all parts (a $499 value)! We have all replacement and optional parts available for our lifts.

Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.

Warehouse Pickup Locations (Contact Us for $300 Discount): Tacoma (WA)

Specifications
Model	AP-12SR (This Model)	AP-10SR (for Comparison)
Manual	AP-12SR Manual	AP-10SR Manual
Style	Overhead	Overhead
Lock Release	Single Point Release	Single Point Release
Warranty	3 Years (36 Months)	3 Years (36 Months)
Lifting Capacity	12,000 LB	10,000 LB
Overall Height	165″	143 3/16″
Overall Width	149″	134 5/16″
Maximum Lift height with Truck Adapters	79″	81″
Maximum Lift height without Truck Adapters	70″	75″
Minimum Height of Adjustable Pads from Ground	4″	4″
Drive Through Width (Carriage to Carriage)	109″	100″
Column to Column Width	123″	109″
Column Cross Section	14 3/8″L x 7 13/16″W	11″L x 7″W
Driving Mode	Dual hydraulic cylinders, direct drive	Dual hydraulic cylinders, chain drive

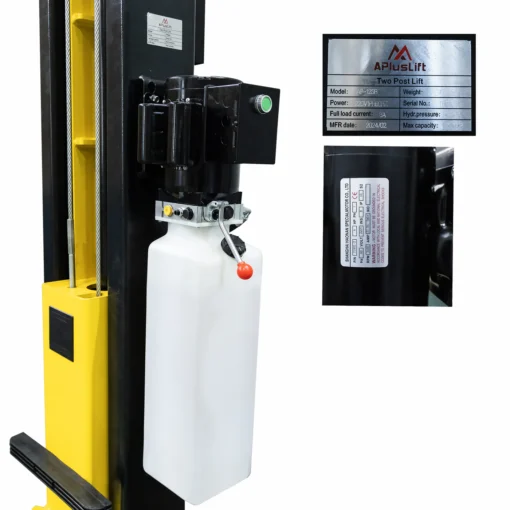

Motor	220V Single Phase 4HP (recommend a 30A breaker)	220V Single Phase 3HP (recommend a 30A breaker)
Hydraulic Oil	3-5 gallons AW32/AW46 (Not Included)	3-5 gallons AW32/AW46 (Not Included)
Time to full rise	75 seconds	50 seconds
Shipping Weight	2500 LB	1400 LB and 120 LB
Shipping package size	117″L x 22″W x 50″H	113″L x 22″W x 40″H (Car Lift) 38″L x 17″W x 14″H (2ft Height Extension Crate)
Arm Assembly	Symmetrical Arm Assembly	Combo (Symmetrical and Asymmetrical) Arm Assembly

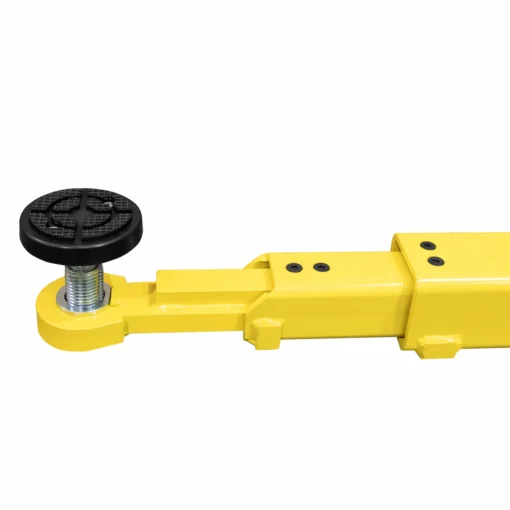

Front Arms	Straight Front 3 Stage reach from 37 1/2″ to 72 3/16″	Straight Front 3 Stage reach from 22 7/8″ to 42 5/8″
Back Arms	Straight Rear 3 Stage reach from 37 1/2″ to 72 3/16″	Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″

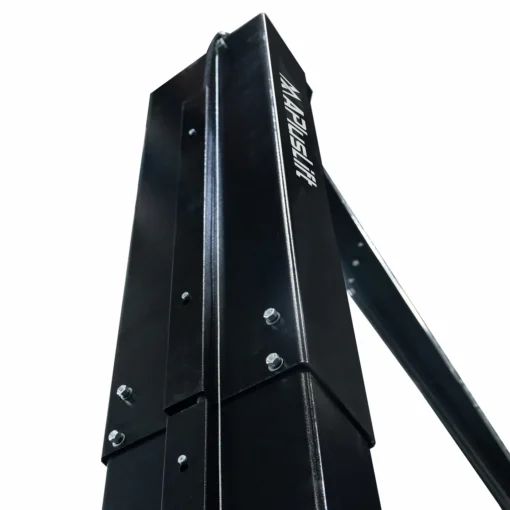

Column Steel Thickness	1/4″	13/64″
Carriage Steel Thickness	1/4″	15/64″
Carriage Yoke Thickness	3/4″	9/16″
Arm Steel Thickness	5/16″	15/64″

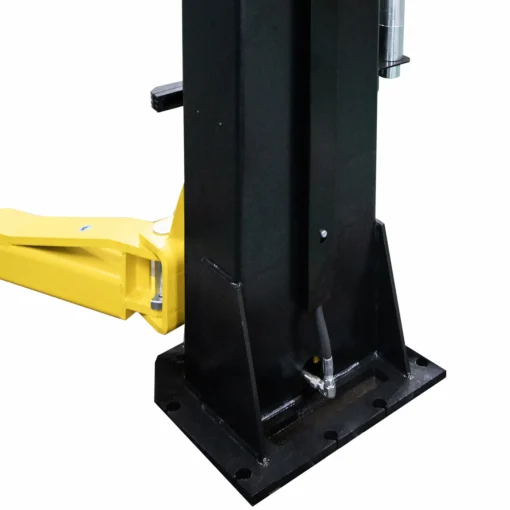

Base Plate Steel Thickness	13/16″	5/8″
Truck Adapters (Height Extensions)	Two Sets: 3″ Tall and 6″ Tall	One Set: 4″ Tall

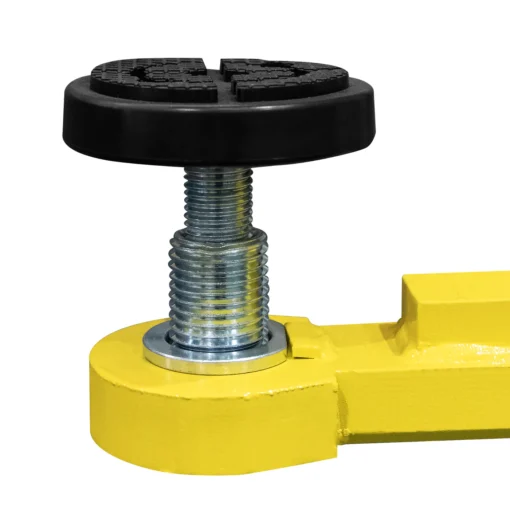

Other Parts Included	4 adjustable screw pads 10 anchor bolts 10 shims
Optional Parts	2 3/4″ and 6″ Tall Truck Adapters
Concrete Requirement	6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below)

Features

Direct drive mode
Durable hydraulic system
Easy to operate and maintain

Single point safety lock release
Double Seal Rings Protecting PU Material
Carriage Material Q355 (ASTM A572), Stronger Than Normal Q235 Steel
Lifting operation by pressing “UP” button on motor
Manual lowering operation by pressing lever
Relief valve built in power pump to prevent overloading

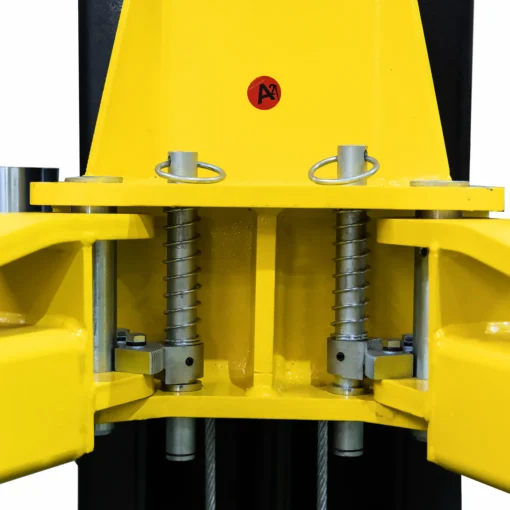

Automatic arm lock restraints
Relief valve built in power pump to prevent overloading
Door guards protection rubber
Up-limit switch to protect cylinders working stroke used in safe length scope

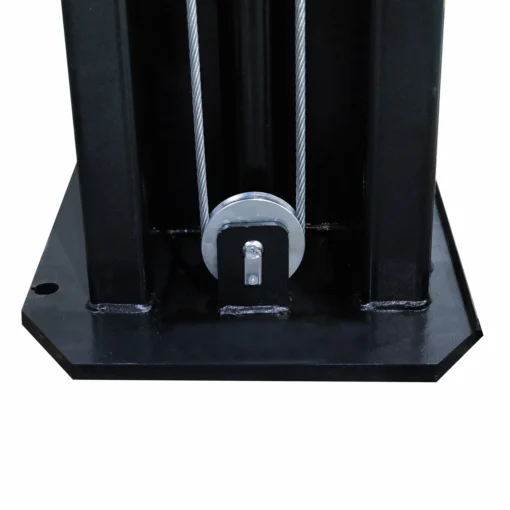

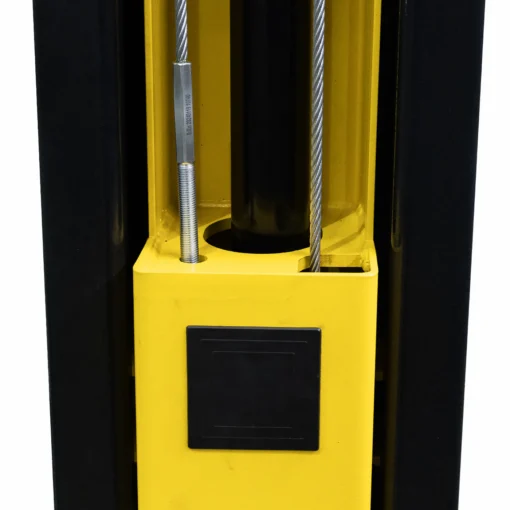

Heavy duty 3/8″ diameter cable and 4 5/16″ pulley that reduce high stress on synchronization process and increase cable life

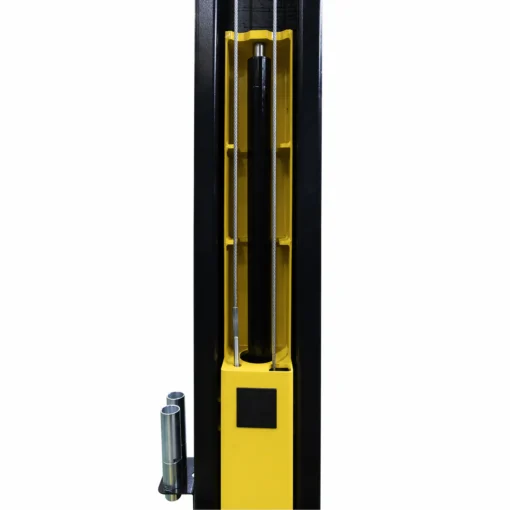

Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
